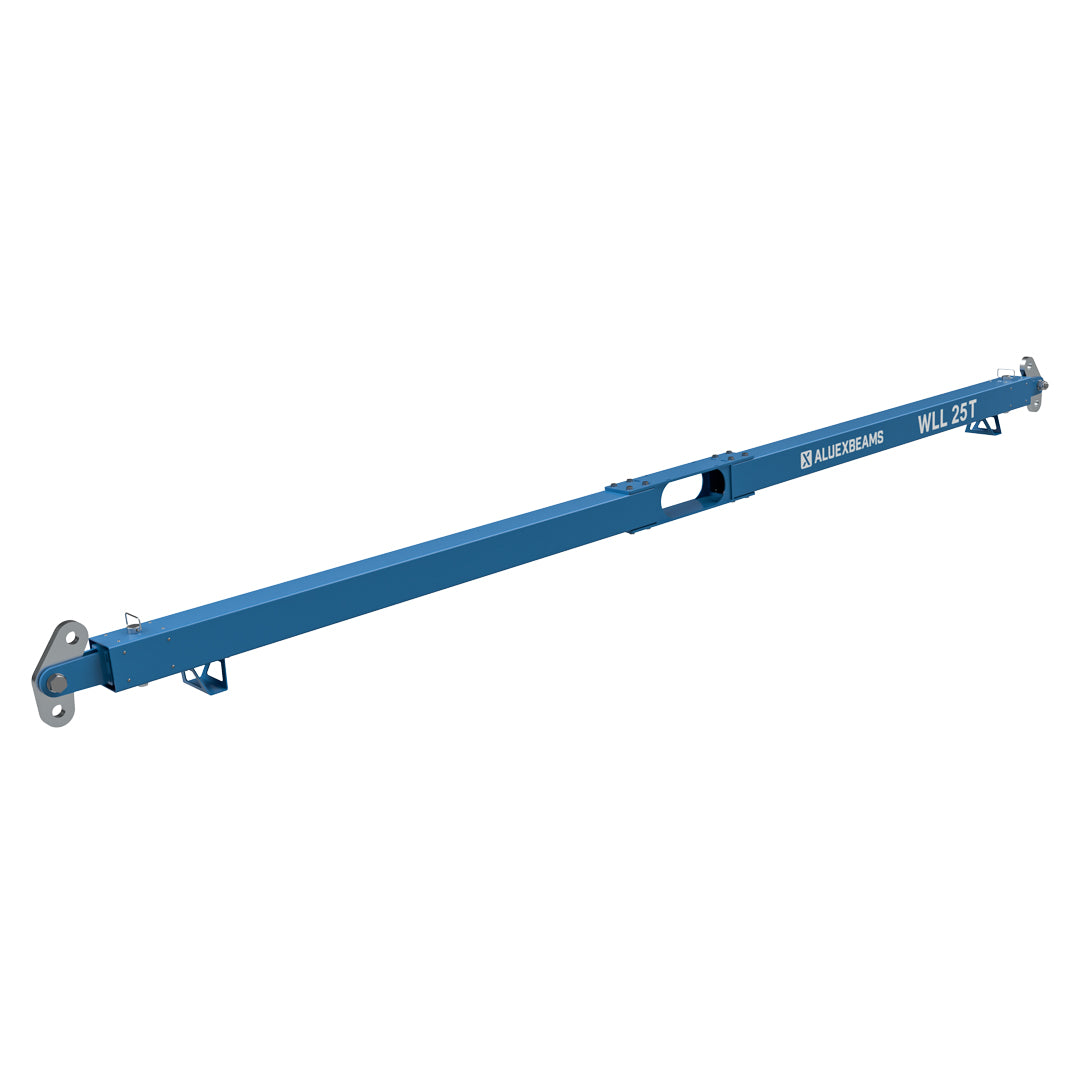

Aluex STR25

Lightweight. Modular. Built for Long and Wide Lifts.

The Aluex STR25 is a high-performance straight spreaderbar engineered for demanding lifts that require stability, reach, and precision. Designed for crane operators who need serious capacity without unnecessary weight, the STR25 offers exceptional handling and versatility for modular houses, wall elements, prefabricated structures, and other long or wide loads.

With a Working Load Limit of 25 tons and a total unit weight of only 522 kg, the STR25 outperforms traditional steel spreaderbars by delivering strength without bulk.

Key Features:

✔ WLL 25 Tons

Built with high-grade steel and designed for safe, stable lifting across a wide range of applications.

✔ Lightweight Construction — Only 522 kg

Significantly lighter than conventional steel spreaderbars in its class, making handling, transport, and rigging faster and easier.

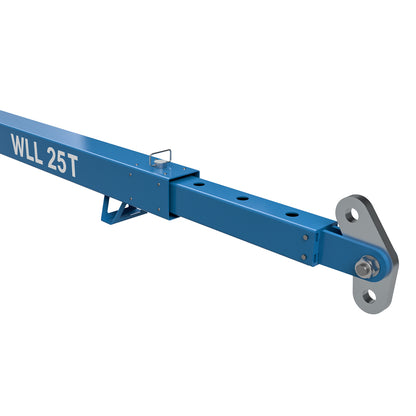

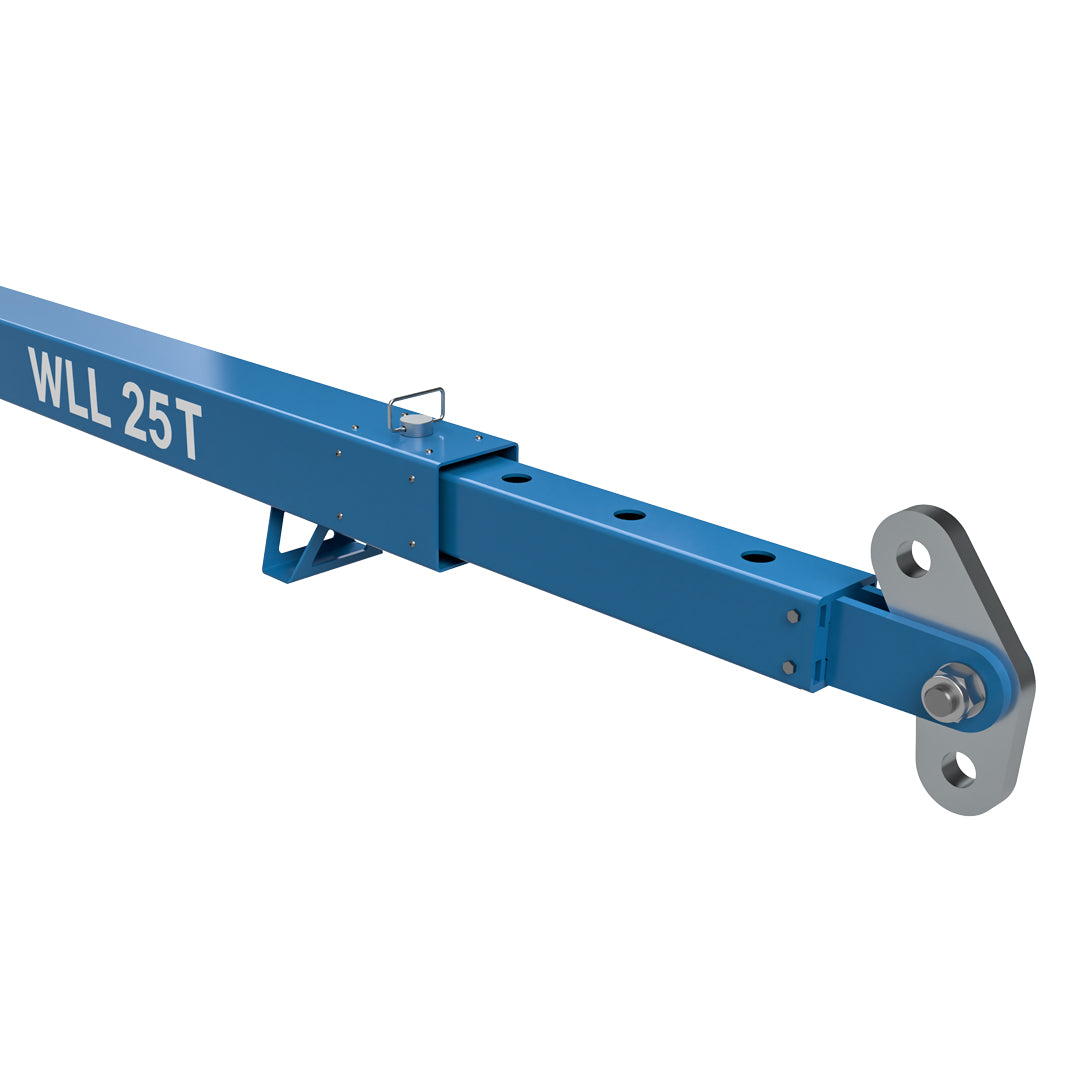

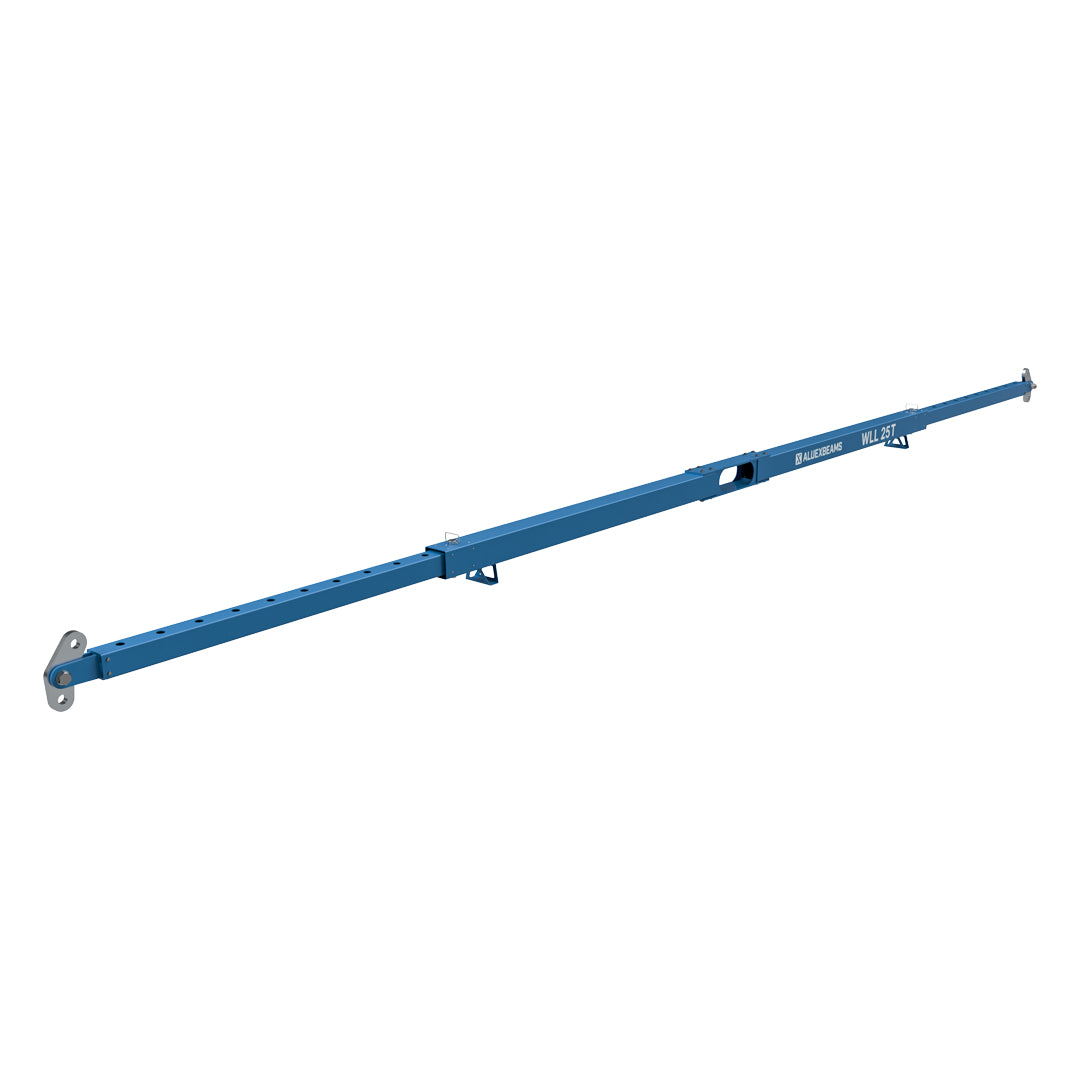

✔ Adjustable Length: 7.33 m up to 12.4 m

Perfect for long or wide loads, with multiple configurations to match your project requirements.

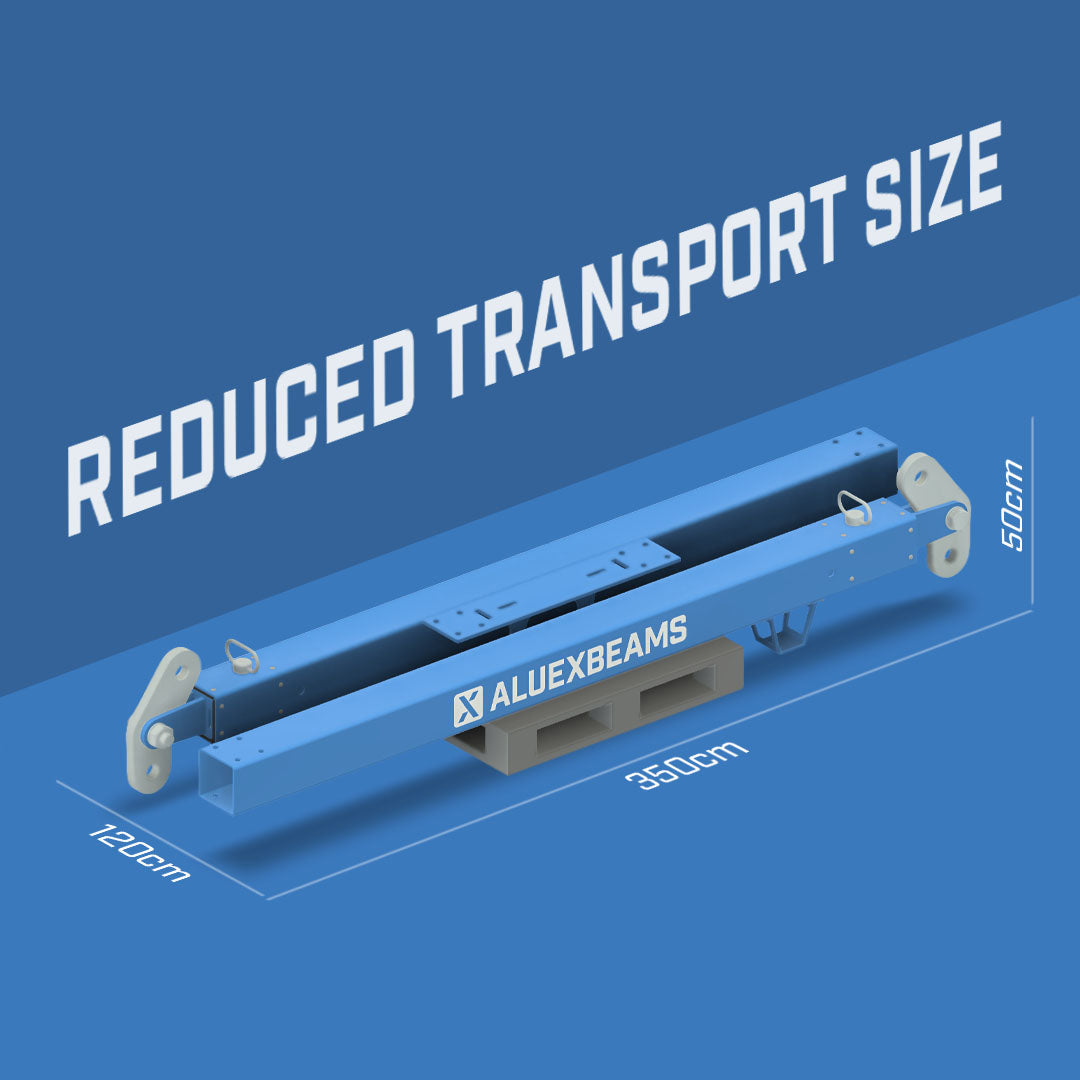

✔ Detachable Legs for Compact Transport

Reduces storage volume and simplifies logistics — ideal for crane trucks with limited space.

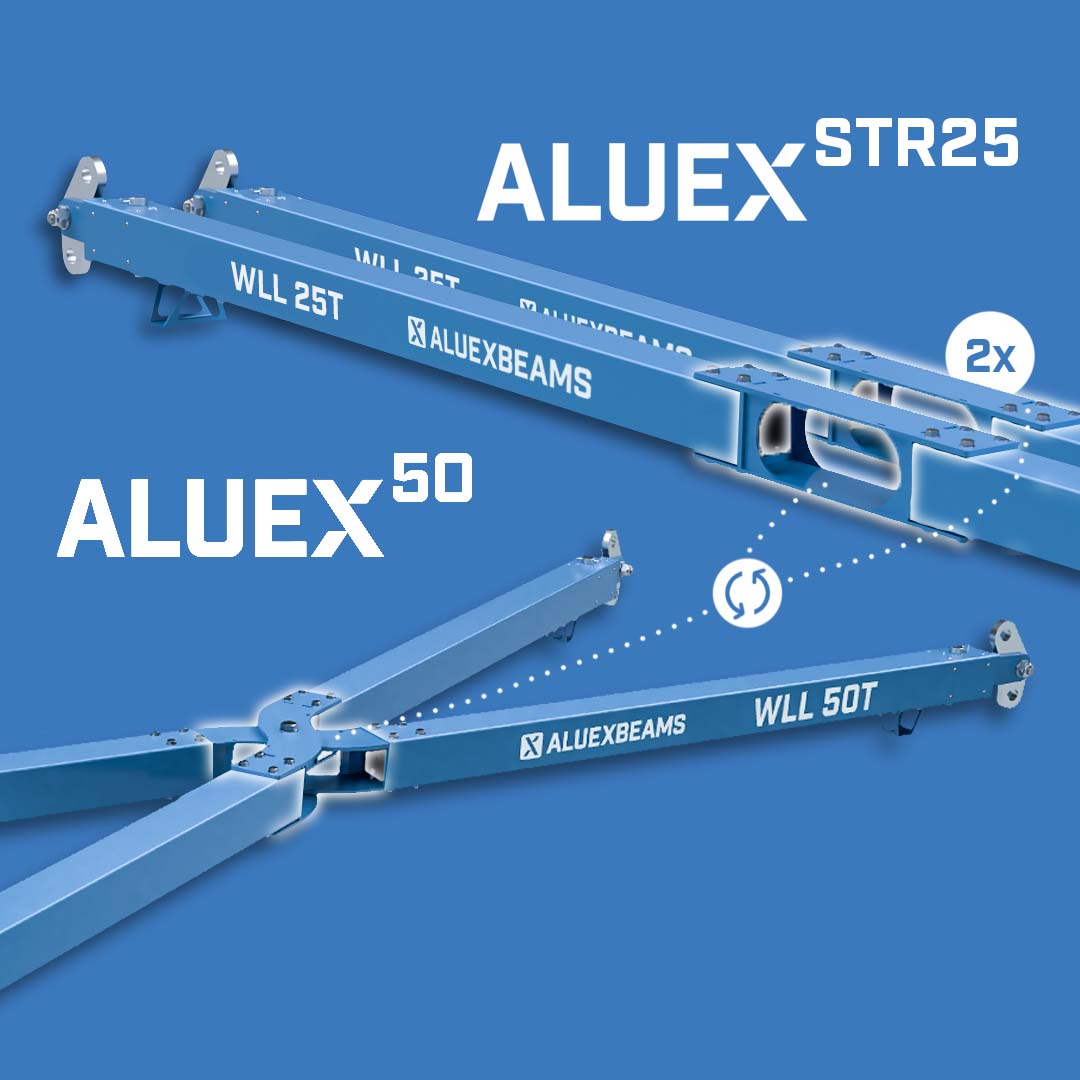

✔ Convertible System (STR25 → Aluex 50)

Combine two STR25 units and swap out the center piece to create the Aluex 50, a 50-ton spreaderbar.
One system, multiple lifting capacities.

Designed for Real-World Lifting

The STR25 was created for operators who need:

• Reliable performance on modular and prefabricated lifts

• Long reach without excessive beam weight

• A spreaderbar that adapts to many job types

• Efficient transport and easy handling between worksites

Every detail is engineered with field experience in mind — from detachable components to the modular upgrade system.

Ideal For

• Modular house lifting

• Wall elements and large panel lifts

• Containerized and prefabricated structures

• Oversized loads requiring extended spread

Why Choose the Aluex STR25?

• Faster setup and handling

• Reduced transport complexity

• More lifting capacity from your crane (less beam weight)

• Flexible system that grows with your needs

• Trusted Aluexbeams engineering and global support

Aluex STR25 follows machinery directive 2006/42/EG, according to the standard SS-EN 13155:2021, and comes with a CE-document and a user manual.

Datasheet
